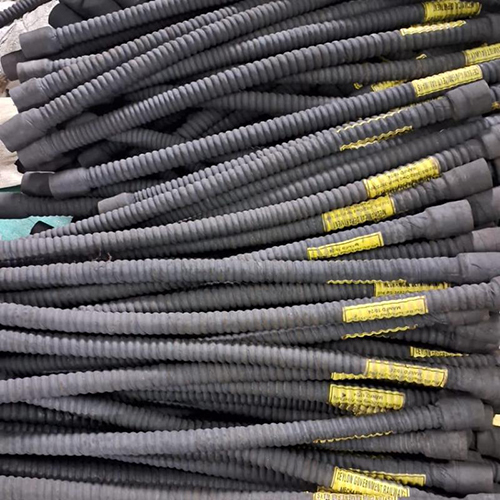

Railway Vacuum Brake Hoses

About Railway Vacuum Brake Hoses

Railway vacuum brake hose pipes are essential flexible rubber components,typically with a 18mm, 25mm(1 inch) to 50mm(2inch),75mm inner diameter, designed to connect the vacuum pipe lines between Railway wagons,coaches and locomotives. Engineered to withstand operational vacuums up to 990 mbar, these reinforced rubber hoses ensure air-tight, durable performance for braking systems.
We are engaged in providing the best quality range of Railway Vacuum Hose.

• Material: Manufactured using high-quality natural rubber and synthetic rubber, making them resistant to ozone, oil, corrosion, and wear.
• Reinforcement: Generally reinforced with steel wire to provide structural strength under vacuum pressure.
• Dimensions: Inner diameter is commonly 18mm,25mm,50mm (2 inches),75mm etc.
• Temperature Range: Designed to operate effectively within temperatures ranging from -25Cnegative 25 raised to the composed with power C25C to 65C65 raised to the composed with power C65C.
• Application: Widely used in locomotives, passenger coaches, and freight wagons (rolling stock).

• Coupling: These hoses connect the train pipes between vehicles to allow a continuous vacuum to be maintained along the entire train.
• Dummy Coupling: When vehicles are not coupled, the hoses are securely placed on a dummy plug to prevent loss of vacuum.
• Flexibility: As flexible conduits, they accommodate the movement, curves, and vertical displacement between coupled railway vehicles.

Features:
Rugged design
Excellent finish
Elevated durability
Specification and uses:
Usage: For repairing and maintenance of railway machines
Available in different lengths
